System for compression of tailgas that was previously lost to flare
To recover this gas means a higher yield of the crude oil and an increased profit
In addition it also reduces emissions to the atmosphere of enviromentally agressive CO2 gases

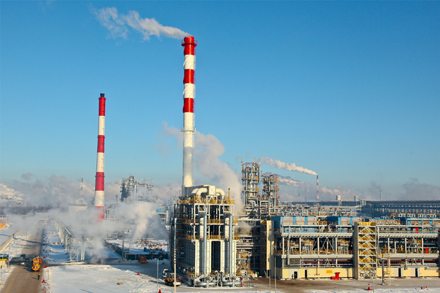

Both examples are from Taneko processing plant in Tatarstan
with raw gas: Sour gas is natural gas containing significant amounts of hydrogen sulfide(H2S)

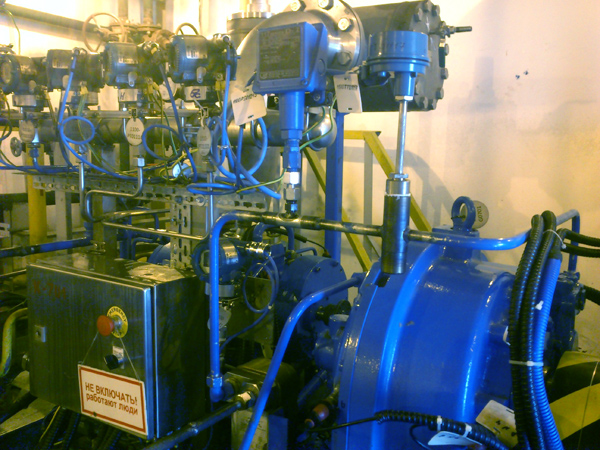

Taneko 1
CDU/VDU Condensing Destilling Unit / Vaccum Destilling Unit
Compression from 1 to 4 Bar.
System has 1 compressor unit and 1 gas cooler. Compressor unit in ex-proof execution and the compressor body is made in stainless steel and of dry type, i.e. no oil injection to compressor chamber.
Compressor unit in commercial operation from July 2012
Taneko 2
Visbreaking Unit / Viscosity breaking unit
Compression from 1 to 9 Bar.
System has 3 compressor unit. Compressor unit in ex-proof execution and the compressor body is made in stainless steel and of dry type, i.e. no oil injection to compressor chamber.
Compressor unit in commercial operation from January 2012
